Place of Origin:
Made in China
Brand Name:
OEM/ODM
Certification:
CE ROHS SAA PSE ETL
Model Number:
LED Stadium Light
Document:
| Model No | XP-QC-JA200W | XP-QC-JA400W | XP-QC-JA600W | XP-QC-JA800W | XP-QC-JA100W |
|---|---|---|---|---|---|
| Power | 200W | 400W | 600W | 800W | 1000W |

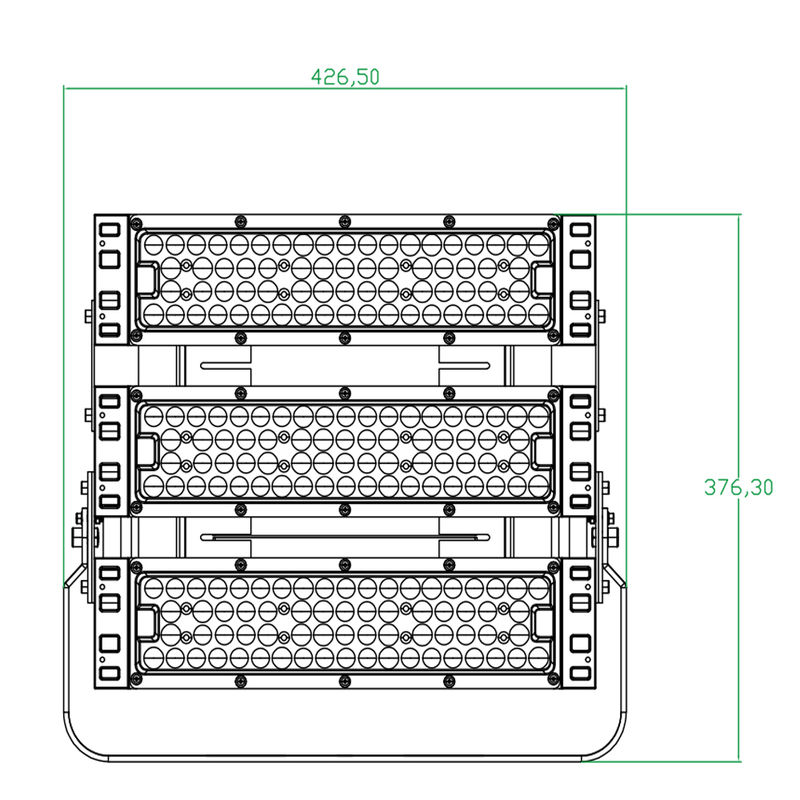

| Product Size(mm) | 402*155*105 | 426*258*105 | 426*376*105 | 426*494*105 | 426*612*105 |
| Luminous Flux | 36000LM | 72000LM | 108000LM | 144000LM | 180000LM |
| Input Voltage | AC100-277/220-240V 50/60Hz | ||||
| Light effect | 150-180LM/W | ||||
| Color temperature | 2700-6500K | ||||
| Color rendering index | CRI>80 | ||||
| Color Tolerance adjustment | ≤6SDCM | ||||
| Power Factor | >0.97 | ||||
| Beam Angle | 45° / 90° | ||||
| Efficiency | ≥95% | ||||
| Working Temperature | -40℃-- +50℃ | ||||
| Life | 50000H | ||||

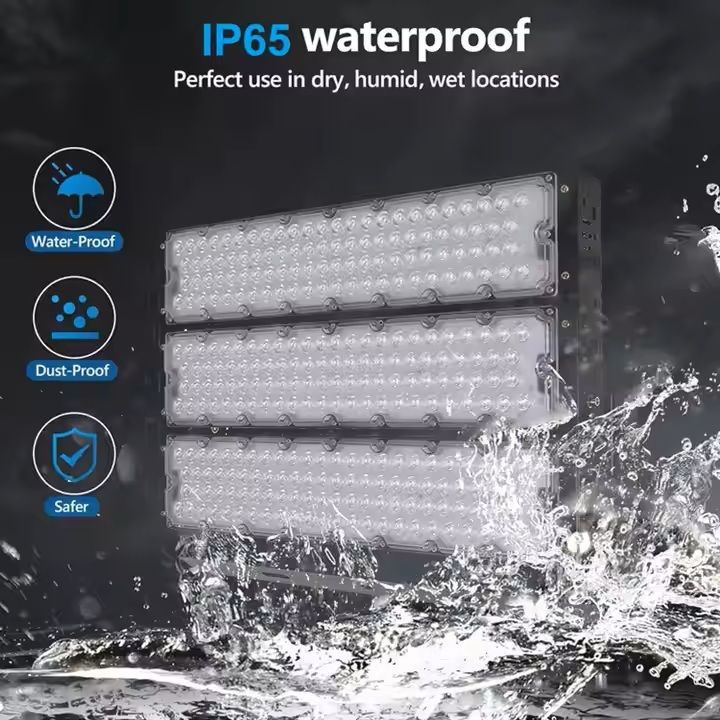

| IK/IP Protection level | IK08/IP65 | ||||
| Insulation grade | Class I | ||||
| Surge protection | 6KV | ||||
| Control protocol(s) | 0-10V/PWM/Rx/Dali2.0 | ||||
| Driver | LiFud/MeanWell/Philips | ||||
| Warranty | 5 years | ||||
| Certification | CE SAA PSE | ||||
Suitable for gardens, factories, overpasses, sidewalks, squares, schools, residential districts, industrial areas, parks, and more.
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
A: 3-5 days for sample preparation, 8-10 working days for mass production.
A: Low MOQ, 1pc for sample checking is available.
A: Ship by DHL, UPS, FedEx or TNT (3-5 days). Airline and sea shipping also available.
A: 1) Share your requirements. 2) We provide quote. 3) Confirm samples and place deposit. 4) We arrange production.
A: Yes. Please inform us before production.
A: Yes, we offer 5 years warranty.
A: Our defective rate is less than 0.2%. During warranty, we'll replace small quantities or repair batch products as needed.
