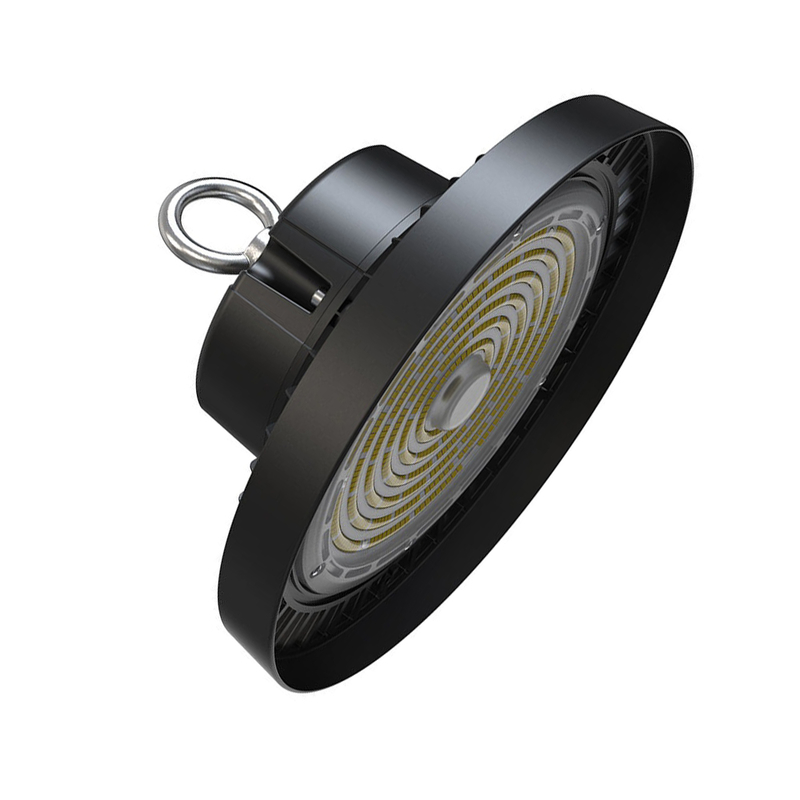

Name: 200W IP65 LED UFO High Bay Light 50/60Hz Frequency With Ceiling Mount Installation
Brand: X-Power CORPORATION LIMITED
SKU: XP-UFO-JY-200W
Price: 17.5 USD
Availability: InStock

Home > products > LED UFO High Bay Light >

200W IP65 LED UFO High Bay Light 50/60Hz Frequency With Ceiling Mount Installation

200W LED UFO High Bay Light

200W ufo led lights

IP65 LED UFO High Bay Light

Place of Origin:

China

Brand Name:

X-Power

Certification:

CE RoHS

Model Number:

XP-UFO-JY-200W

Document:

XP-UFO-JY-200W datasheet.pdf

Chat Now

Request A Quote

Product Details

Rated Voltage:

AC100-240V

Installation:

Ceiling Mount

Extra Optional:

PC/aluminum Reflector, Tempered Glass

Efficiency:

160LM/W

Frequency:

50/60Hz

Housing Color:

Black

Led Type:

LED Or Nhia LED

Warranty:

5 Years

Highlight:

200W LED UFO High Bay Light

200W ufo led lights

IP65 LED UFO High Bay Light

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

17.5USD/pcs

Packaging Details

carton

Delivery Time

10-15working days

Payment Terms

T/T

Supply Ability

50000pcs per month

Waterproof Ufo High Bay Light 100w CE Certified IP65 Energy Efficient

Chat Now

Industrial Ufo Led Shop Lights 300w 200LM/W Commercial Ufo Lights Led For Warehouse

Chat Now

400W Dimming Ufo Shop Lights High Bay Led Ufo Lights 170LM/W IP65

Chat Now

Adjustable LED UFO High Bay Light 3 Power CCT 150W Commercial Dimmable For Garage Warehouse

Chat Now

13590447317

Hedy.yin@x-power.cc

86--13590447317

Chat Now

Product Description

200W IP65 LED High Bay Light with 5-Year Warranty

Product Specifications

Attribute	Value
Rated Voltage	AC100-240V
Installation	Ceiling Mount
Extra Optional	PC/aluminum reflector, tempered glass
Efficiency	160LM/W
Frequency	50/60Hz
Housing Color	Black
LED Type	LED or Nhia LED
Warranty	5 years

Model Variations

Model No	XP-UFO-JY-100W	XP-UFO-JY-150W	XP-UFO-JY-200W	XP-UFO-JY-300W	XP-UFO-JY-400W	XP-UFO-JY-500W
Power	100W	150W	200W	300W	400W	500W
Product Size	Φ238mm × 155mm	Φ255 × H173	Φ300mm × 196mm	Φ385mm × 192mm	Φ385mm × 192mm	Φ490mm × 240mm

Technical Specifications

Lighting Effect: 150-200LM/W

PF: >0.9

Driver Efficiency: >95%

Beam Angle: 60°/90°/120°

Operating Temperature: -22°F to 104°F (-30°C to +50°C)

Color Temperature: 3000K/4000K/5000K/5700K

Ra: Ra>70/80/90

IP Rating: IP65

IK Level: IK08

Insulation Grade: Class I

Surge Protection: 6KV

Material: AL+PC (Glass)

Control Protocols: 0-10V/PWM/Rx/Dali2.0

Sensor: Motion Sensor

Emergency: Optional auxiliary battery

Certification: CE/RoHS/ETL/cETL/DLC

Key Features

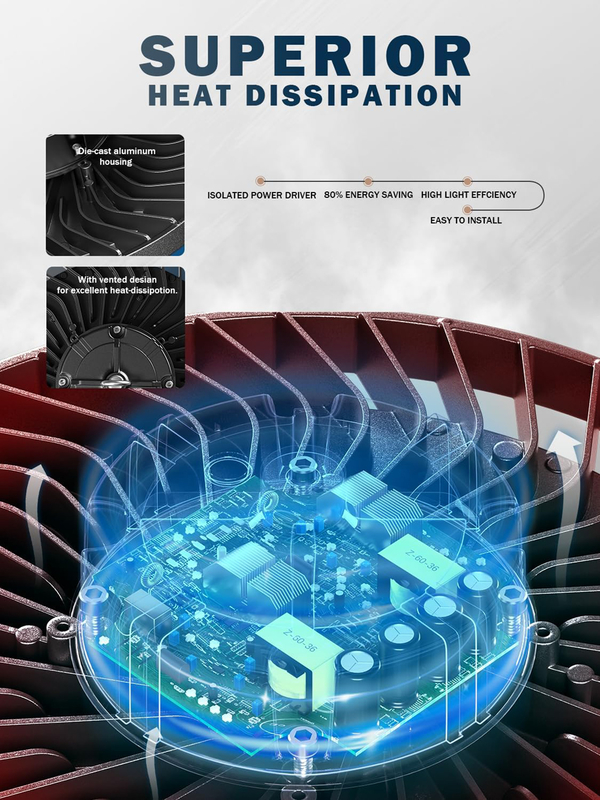

Durable Construction: Made of aluminum alloy for strength and durability with excellent heat dissipation
Optimal Installation Height: Designed for installation at 8-15m heights
High-Quality Light Source: Uses SMD2835/3030/5050/7070 LEDs for high brightness and minimal light decay
Advanced Power Supply: High-stability isolated constant current with over-temperature protection and wide voltage range
Efficient Cooling System: High-purity aluminum radiator with special design for maximum heat dissipation
Installation Method: Hoisting installation

Applications

Ideal for supermarkets, large workshops, steel mills, warehouses, highway toll stations, gas stations, exhibition halls, gymnasiums, bus stations, railway stations, and other high-ceiling spaces requiring superior illumination.

Product Images

Installation Instructions

Ensure proper sealing of wiring connections to prevent electric leakage. Never connect wiring while powered.
Implement appropriate waterproofing and leakage prevention measures for external power connections.
Comply with all fire safety regulations when using the fixture.
Professional electrician installation required. Use 0.75-1mm three-core cable (brown=L, blue=N, yellow-green=PE).

5-Year Warranty Included - Our commitment to quality and durability with comprehensive coverage.
