Place of Origin:
Made in China
Brand Name:
OEM/ODM
Certification:
CE ROHS ETL cETL SAA PSE
Model Number:
XP-PL3040

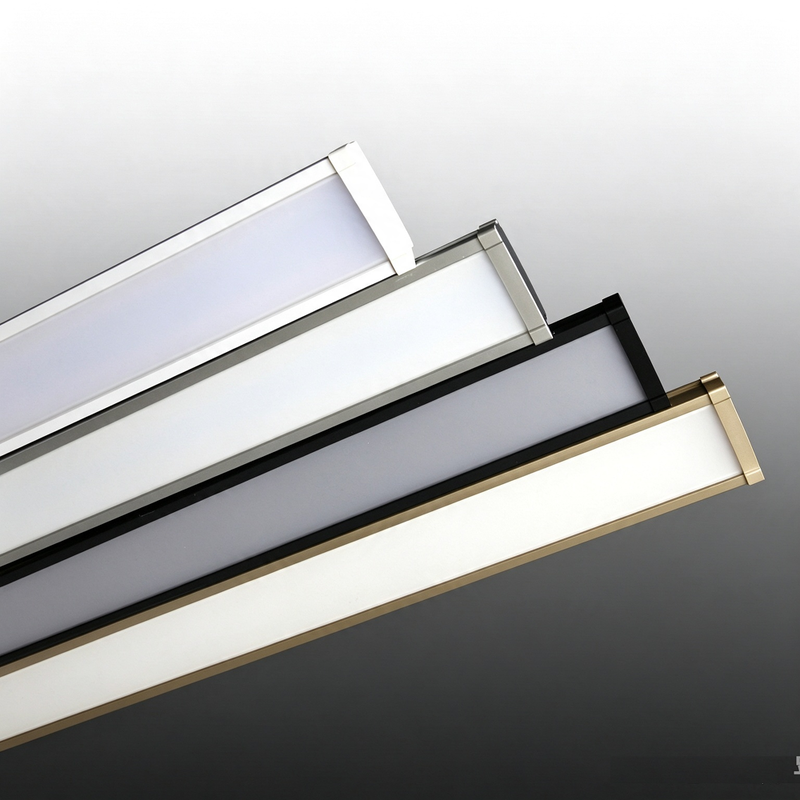

150LM/W LED Batten Light IP65 Waterproof Dustproof Anti-corrosion Fixture
Specifications:
| Model No | XP-PL3010 | XP-PL3020 | XP-PL3030 | XP-PL3040 | XP-PL3050 | XP-PL3060 | XP-PL3080 |
| Size(mm) | 300x124x43 | 640x124x43 | 900x124x43 | 1200x124x43 | 1500x124x43 | 1500x124x43 | 1800x124x43 |
| Power | 10W | 20w | 30w | 40w | 50W | 60W | 80W |
| LED Chip | SMD2835 | ||||||
| Input Voltage |
85-265VAC/100-277VAC
|
||||||
| Power Frequency | 50/60Hz | ||||||
| Power Factor | 0.9 | ||||||
| LED Lum. Efficiency | 150LM/W | ||||||
| CCT | 5800-6100K(CW),4000-4200K(NW),3000-3150(WW) | ||||||
| CRI | Ra>80 | ||||||
| LED Node Temperature | ≦55℃ | ||||||
| Operation Ambient Temperature | -20-45℃ | ||||||
| Storage Temperature | -25-50℃ | ||||||
| IP Grade | IP65 | ||||||
| Color Tolerance Adjustment | 5SDCM | ||||||
| Power supply | Build-in | ||||||
| Housing Color Opitional | White/Black/Silver/Gold | ||||||
| Certification | PSE&SAA&CE&ROHS&ETL&DLC | ||||||
150LM/W High-Efficiency LED Batten Light: Toughness and Intelligence in One Fixture
Wet, dusty, and bump-prone environments wear ordinary luminaires down before a single season ends.
Our LED Tri-proof Fixture series rewrites what "industrial-grade lighting" should be — pairing hardcore IP65 + IK08 protection
and 150LM/W ultra-high efficacy with switchable wattage/CCT and smart options.
Carwash mist, cold-storage condensation, ammonia and dust in livestock farms, vibration and impact on the factory floor — these environments are a constant torture test for luminaires. Conventional batten lights fail, leak, and flood within days; the labor cost of replacing them often exceeds the price of the lamp itself.

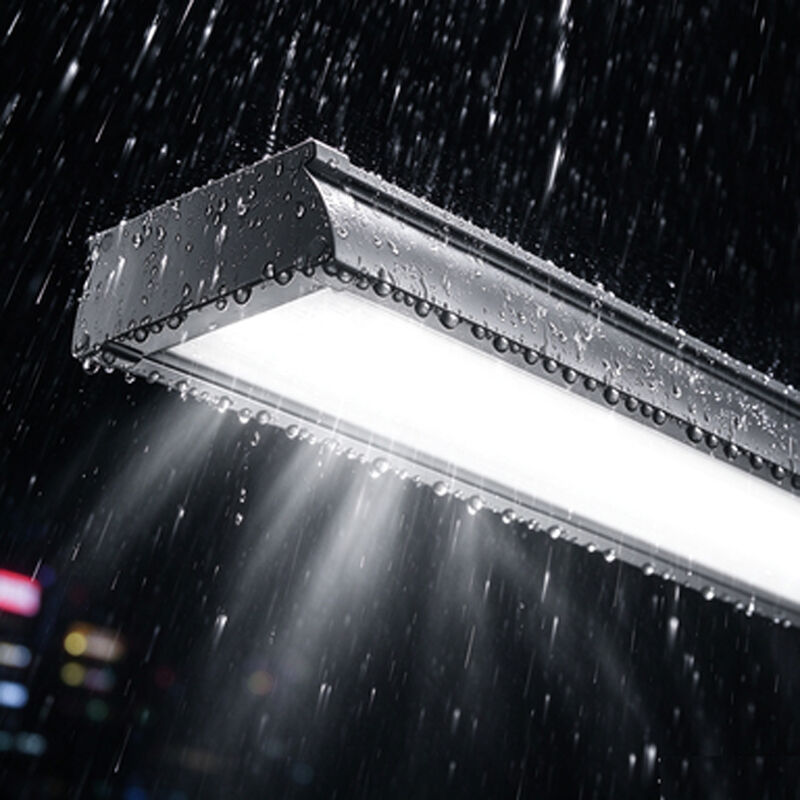

Tri-proof lights (Tri-proof = waterproof, dustproof, anti-corrosion) are built exactly for such scenes. And ours is not just "rugged" — it is also highly efficient and genuinely smart.
Packing Details
| 1 | XP-PL3010 300*120*40mm | 1pc/Inner Box: 35*13.5*5cm NW:0.8kg GW:0.9kg |
12pcs/Carton: 70.5*28.5*16.5cm NW:7.2kg GW:10.5kg |
| 2 | XP-PL3020 600*120*40mm | 1pc/Inner Box: 69*13.5*5cm NW:1.2kg GW:1.4kg |
6pcs/Carton: 70.5*28.5*16.5cm NW:7.2kg GW:9.5kg |
| 3 | XP-PL3030 1200*120*40mm | 1pc/Inner Box: 125*13.5*5cm NW:2.3kg GW:2.6kg |
6pcs/Carton: 132.2*28.5*16.5cm NW:13.8kg GW:17kg |
| 4 | XP-PL3040 1200*120*40mm | 1pc/Inner Box: 125*13.5*5cm NW:2.3kg GW:2.6kg |
6pcs/Carton: 132.2*28.5*16.5cm NW:13.8kg GW:17kg
|
| 5 | XP-PL3050 1500*120*40mm | 1pc/Inner Box: 155*13.5*5cm NW:2.8kg GW:3.2kg |
6pcs/Carton: 162.2*28.5*16.5cm NW:16.2kg GW:21kg |
| 6 | XP-PL3060 1500*120*40mm | 1pc/Inner Box: 155*13.5*5cm NW:2.8kg GW:3.2kg |
6pcs/Carton: 162.2*28.5*16.5cm NW:16.2kg GW:21kg |
